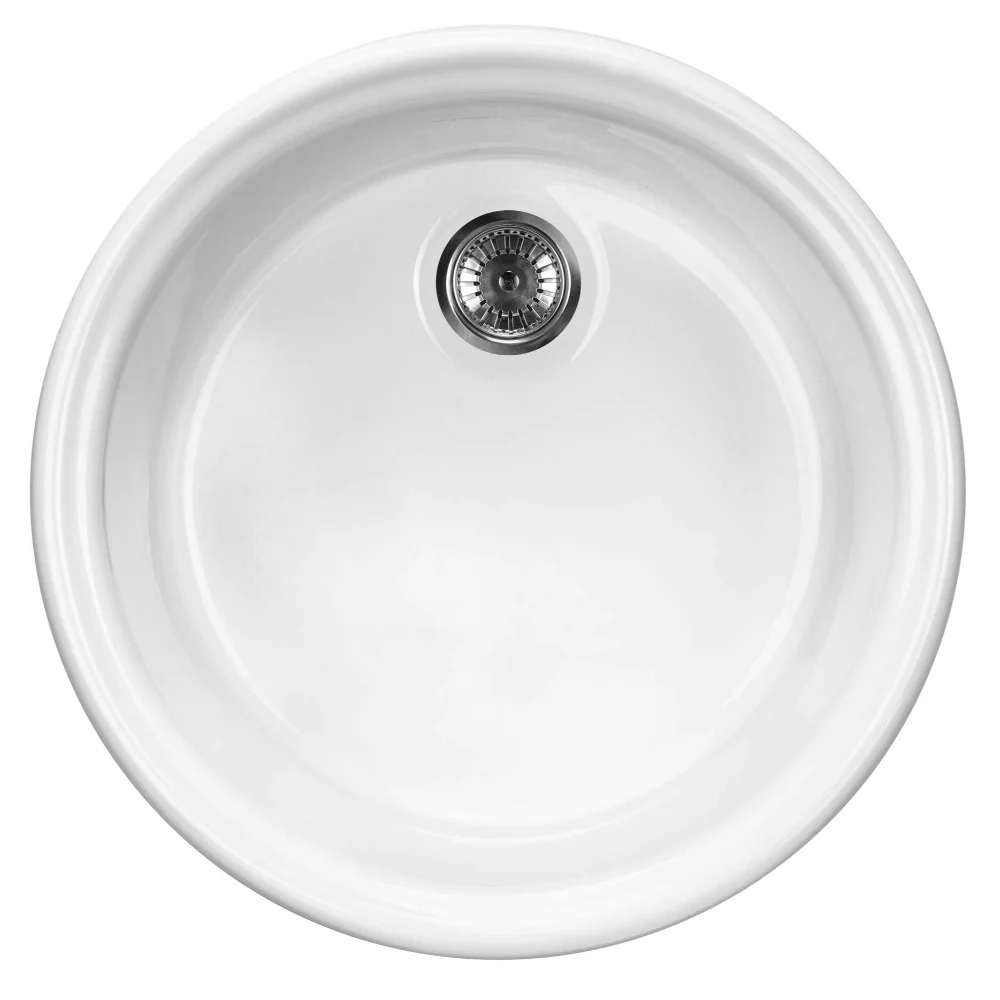

Lusitano Ceramic sink 1-bowl
- The sink is equipped with fittings with a connection to the dishwasher
ATTENTION! Before cutting a hole in the tabletop to install the sink, take into account the actual dimensions of the model you purchased.
We start the assembly of the sink by preparing the appropriate hole in which it will be embedded. To do this, trace the shape of the sink on the countertop, and then draw the same shape with a shift of 10 mm inwards. As a result, the resulting hole will be 10 mm smaller than the dimensions of the sink. Cut a hole on the inside of the traced line. Measure the recessed sink into the hole prepared in this way and level any unevenness.
Hard and durable ceramics does not lose its properties with long use
Ceramic products are created in a kiln at a temperature almost 1200 degrees Celsius, therefore they are special hardness and resistance. High durability of colour, they do not discolour even after many years of use. Importantly, they do not accept odors, such as the smell of fish. Does not react with chemicals used in the kitchen. However, the most important feature of ceramic products is the smooth surface, which prevents limescale and facilitates free flow of water from the surface of the sink. Ceramic products made are from natural materials, therefore it is a reasonable solution for people who care about the state of the environment.
Dedicated cleaning agent, safe for cleaned surfaces
The use of dedicated agents means that the surfaces do not deteriorate and remain smooth for for a long time, facilitating daily cleaning. A specially selected composition removes the most common dirt very effectively. On the other hand, the preparations are mild for a given type of surface (metal, granite, ceramics and others), without entering into chemical reactions with them. The preparations are biodegradable and thus harmless for the environment. With Deante cleaning products, keeping things in order will be extremely easy!

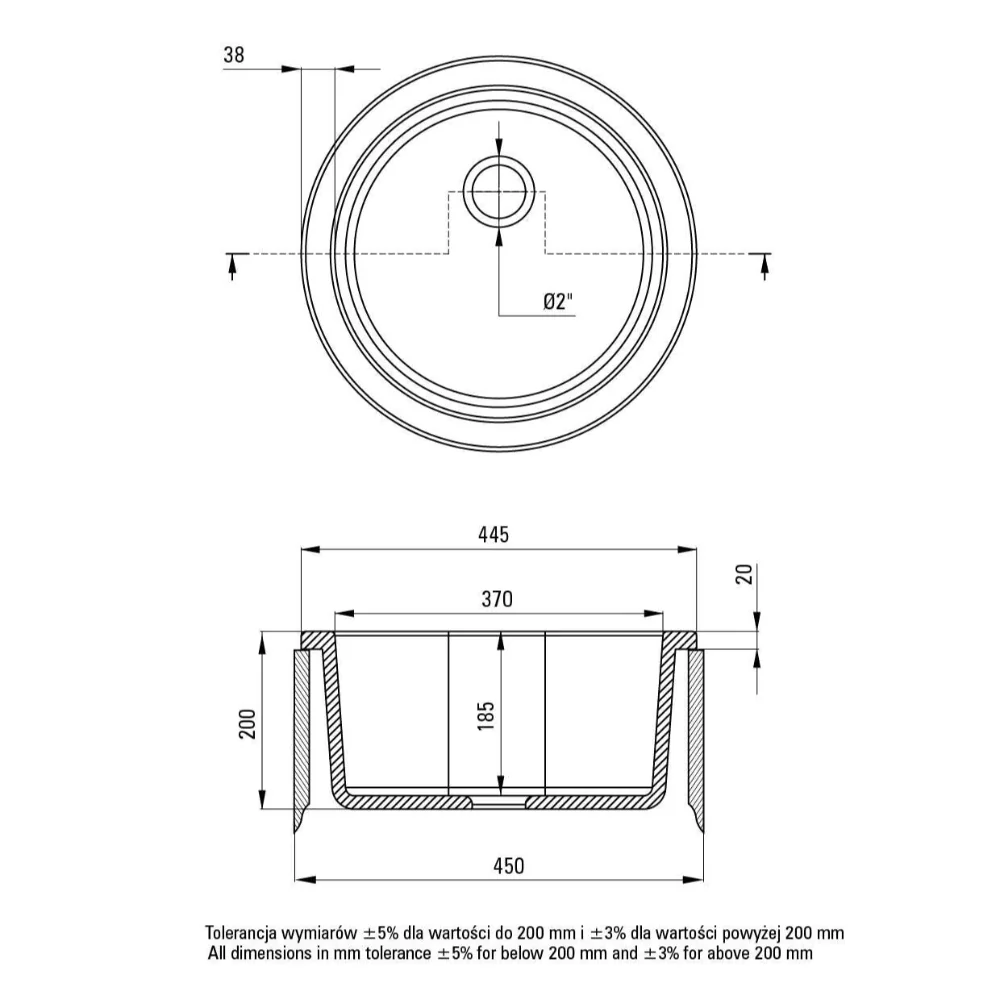

Product specification
| Series | Lusitano |
|---|---|
| Colour | white |
| Surface type | shine |
| Material | ceramic |
| Installation method | inset |
| Number of bowls | 1 |
| Minimum cabinet width [mm] | 450 |
| Height [mm] | 200 |
| Diameter [mm] | 445 |
| Bowl depth [mm] | 185 |
| Reversible | Yes |
| Equipped with accessories | Yes |
| Drain diameter | 2'' |
| Colour | steel |
| Plug type | manual |
| Possibility to connect a dishwasher/ washing machine | Yes |
Files to download
| File type | File name | Extension | Download |
|---|---|---|---|
| technicalDrawing | ZCL_680N.pdf | Download | |
| instruction | Zlewozmywaki ceramiczne.pdf | Download | |
| model3d | ZCL_680N.3DS | 3DS | Download |
| model3d | ZCL_680N.dxf | dxf | Download |
| model3d | ZCL_680N.obj | obj | Download |
| warrantyCard | Deante_Gwarancje_Warranty-od-18_05_2021-_19287.pdf | Download | |
| hygienicCertificate | Atest-PZH-Zlewozmywaki-ceramiczne.pdf | Download | |
| declaration | DOP ceramics sinks.pdf | Download |
